Spout Pouch SampleApplicable Bag Types
View All Bag Types →Spout Pouch Sample
Spout Pouch SampleProduction Process
Machine Features

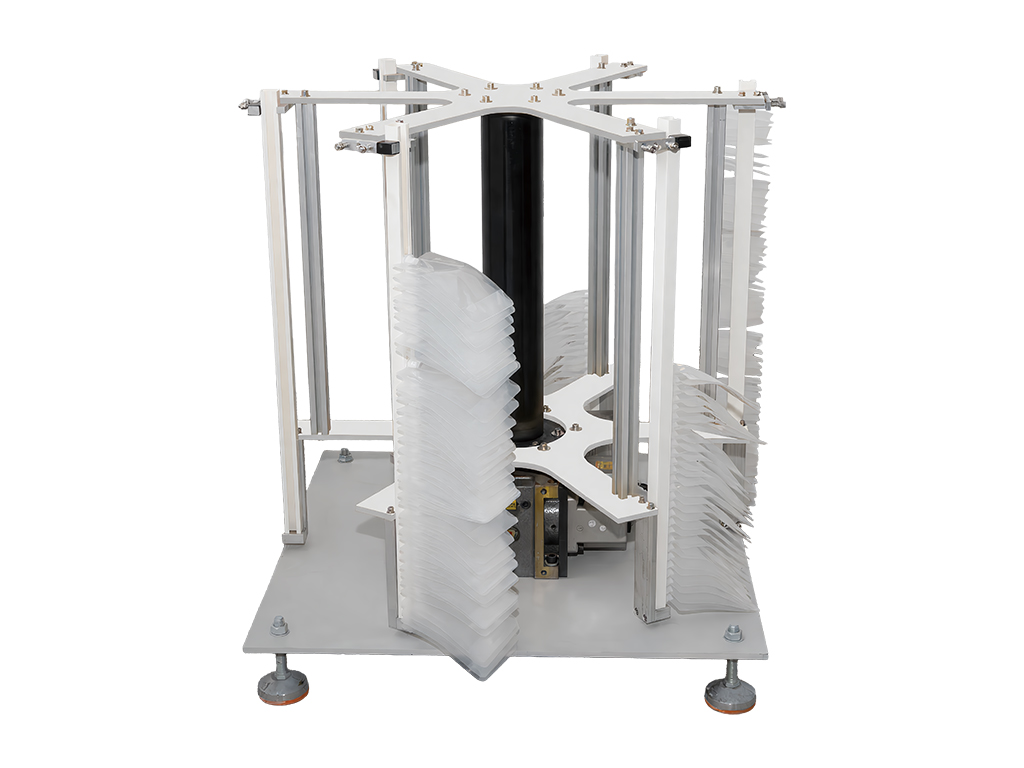

ModelKQ‑260A
Web Running DirectionRight‑to‑Left
Spout Welding TypeStraight‑spout laminated pouch, Angle‑spout laminated pouch
Sealing TypeHeat Sealing
Straight‑spout Pouch SizeW (70‑170 mm) L (80‑220 mm)
Angle‑spout Pouch SizeW (100‑150 mm) L (120‑220 mm)
Spout Inner Diameter6‑15 mm
Mechanical Speed43 pcs/min
Spout Welding Speed25‑40 pcs/min
Actual speed depends on material properties.
Total Power (approx.)3.5 kW
Power Supply220 V, 50 Hz
Operating NoiseApprox. 60 dB
Machine Overall Dimension2600×1800×1700 mm
Machine Weight1100 kg
Compressed Air5‑7 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-260A design).
Download brochures, certificates and technical files for KQ-260A.
