KQ‑800NJT Automatic High‑speed Internal Glue‑applied Patch Pouch Making Machine

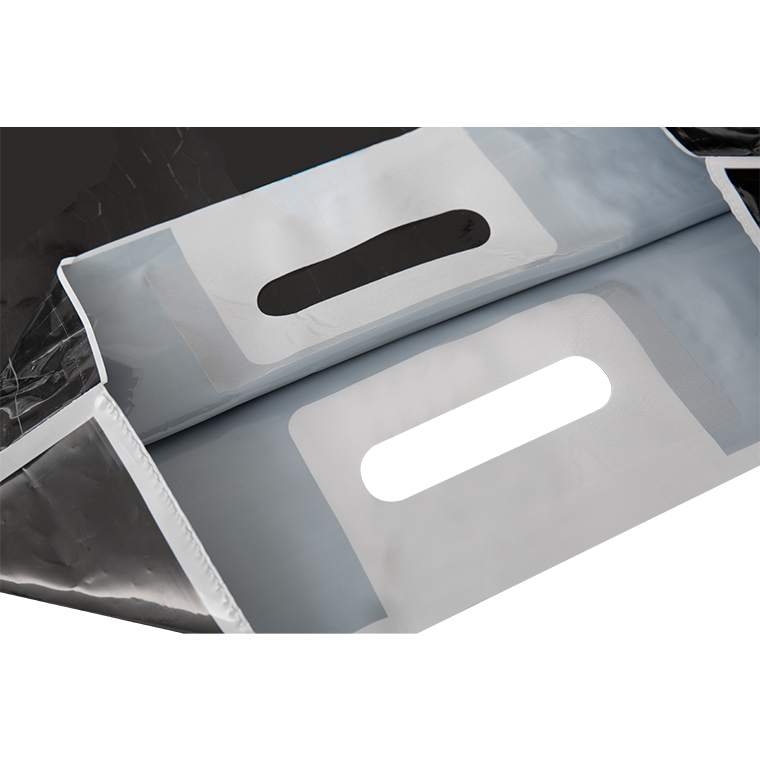

High-speed machine that welds an internal reinforcing patch inside the bag for stronger handle and tear zones. Ideal for shopping, garment and promotional pouches.
Max Speed—
Bag Width200‑600 mm
Working Lines0.03‑0.1 mm
Control SystemPLC + Touch Screen

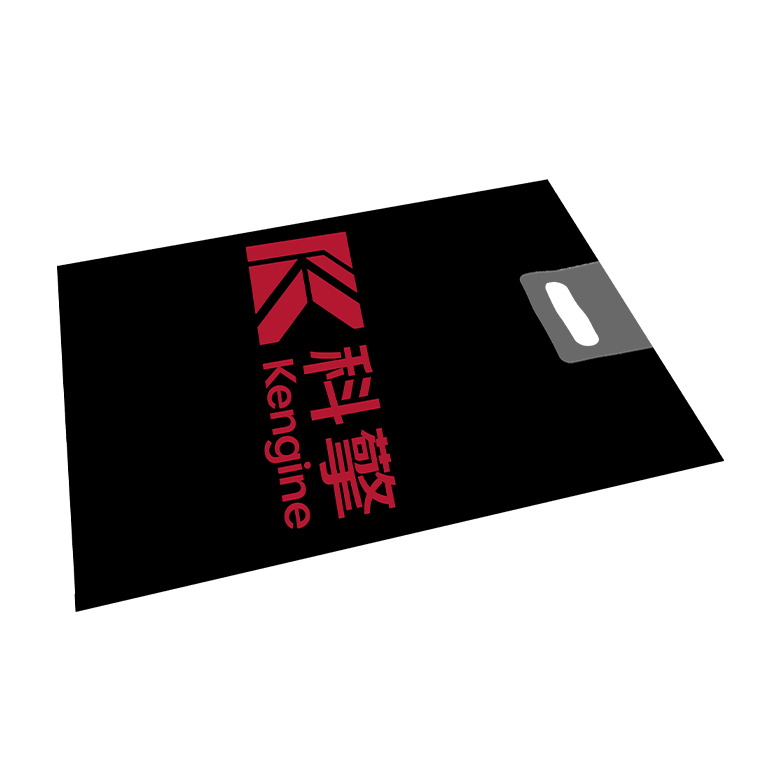

Applicable Bag Types
View All Bag Types →2
1Production Process
Machine Features
ModelKQ‑800NJT
Web Running DirectionRight‑to‑Left
Unwinding Width1600 mm
Unwinding DiameterΦ1000 mm
Bag Making Length (Bag Height)200‑750 mm
Bag Making Width (Bag Width)200‑600 mm
Bag‑making Speed130 pcs/min
Line Speed60 m/min
Bottom Gusset30‑80 mm
Film ThicknessHDPE 0.03‑0.07 mm
LDPE 0.04‑0.1 mm
LDPE 0.04‑0.1 mm
Patch Film Width145 mm
Max. Diameter of Patch Film RollΦ600 mm
Patch Film ThicknessLDPE 0.08‑0.13 mm (single layer)
Total PowerApprox. 16 kW
Power Supply380V, 50Hz
Operating NoiseApprox. 90 dB
Machine Overall Dimension11000×1900×2600 mm
Machine Weight3500 kg
Compressed Air7.5 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-800NJT design).
