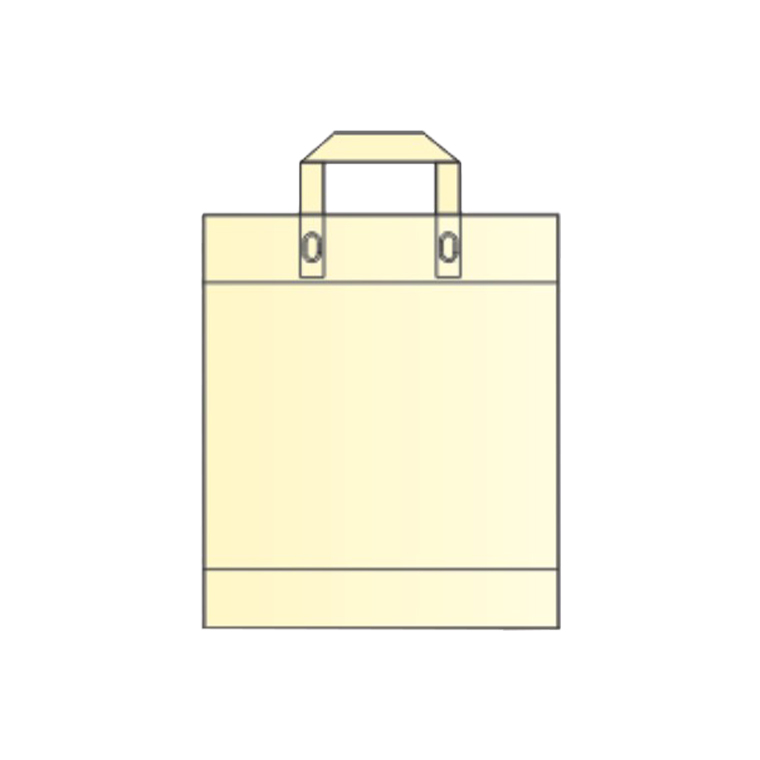

Soft Loop Handle BagApplicable Bag Types
View All Bag Types →Soft Loop Handle Bag

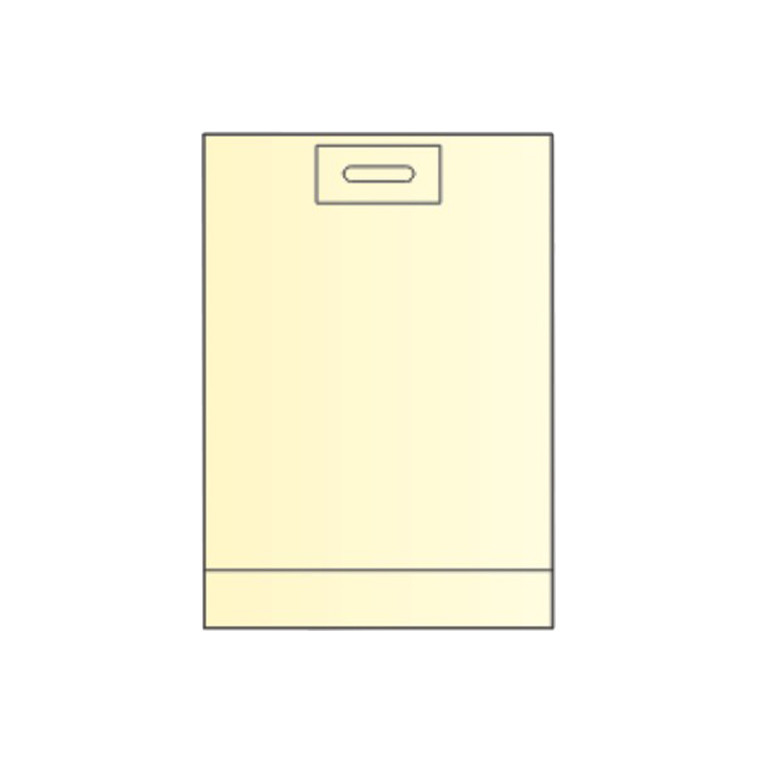

Patch Handle Bag

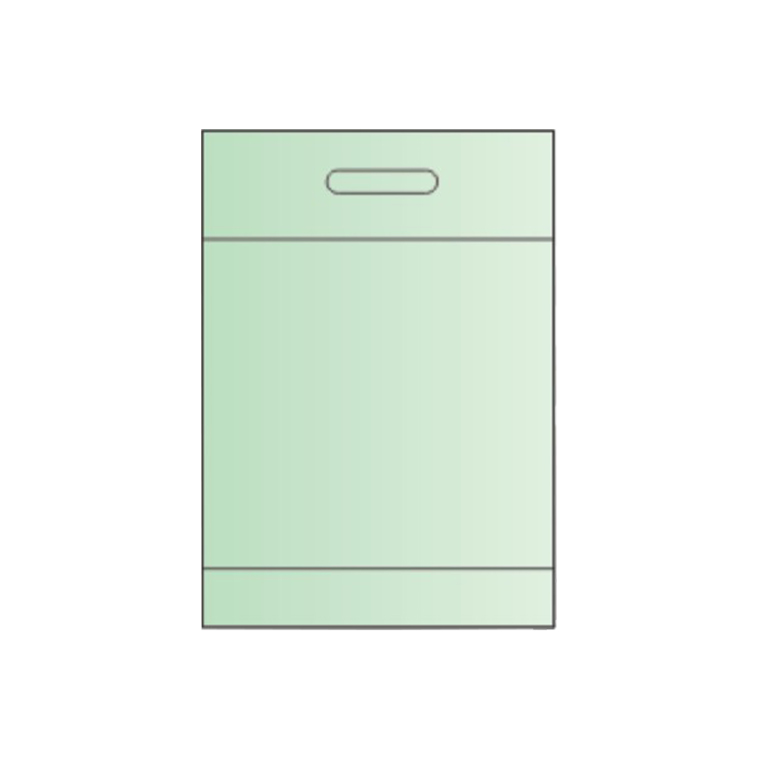

Die-cut Handle BagProduction Process
Machine Features
1High Throughput
- Ideal for mixed, large-batch production
2High Speed & Stable
- Reliable high-speed running
3Independent Feeders
- Separate handle & patch feeding systems
44 Bag Styles
- Soft-loop handle, arc patch, punching, side seal
ModelKQ‑800SDP
Bag‑making ModesSoft handle bag, round‑corner patch‑handle bag, top‑fold hole‑punching bag, ordinary edge‑sealed bag
Web Running DirectionRight‑to‑Left
Sealing TypeHot‑cut edge sealing
Unwinding Width1600 mm
Max. Unwinding DiameterΦ1000 mm
Bag‑making Length (Bag Height)250‑700 mm
Bag‑making Width (Bag Width)250‑600 mm
Mechanical Speed150 cycles/min
Bag‑making SpeedSoft handle bag: 100 pcs/min
Patch‑handle bag: 100 pcs/min
Top‑fold hole‑punching bag: 120 pcs/min
Actual bag‑making speed subject to material properties.
Line Speed60 m/min
Top Folding Edge50‑75 mm
Bottom Gusset20‑60 mm
Film ThicknessHDPE 0.03‑0.07 mm
LDPE 0.04‑0.1 mm
Handle Film Width360 mm
Max. Diameter of Handle Film RollΦ600 mm
Handle Film Thickness (Single Layer)LDPE 0.1‑0.15 mm
Patch Film Width150 mm
Max. Diameter of Patch Film RollΦ600 mm
Patch Film Thickness (Single Layer)LDPE 0.08‑0.15 mm
Total PowerApprox. 18 kW
Power Supply380V, 50Hz
Operating NoiseApprox. 80 dB
Machine Overall Dimension10200×2200×1950 mm
Machine WeightH3600 kg
Compressed Air6 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-800SDP design).
