Bottom‑seal Soft‑handle BagKQ-500ZD
KQ‑500ZD Automatic Bottom‑seal Soft Handle Bag Making Machine
U-shaped compact layout with bottom-seal process and soft-handle heat-sealing. Strong, firm bonding, compatible with multiple films and gusset bags. Stable output, ideal for soft-handle production.
Max Speed50 pcs/min
Bag Width200-480 mm
Working Lines0.03-0.13 mm
Control SystemPLC + Touch Screen
Applicable Bag Types

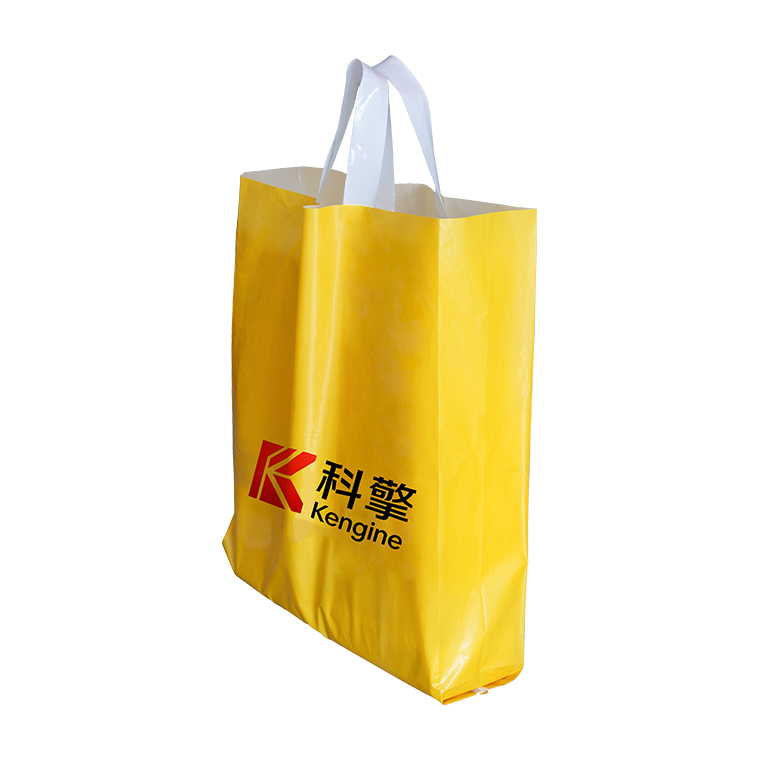

View All Bag Types →Bottom‑seal Soft‑handle Bag

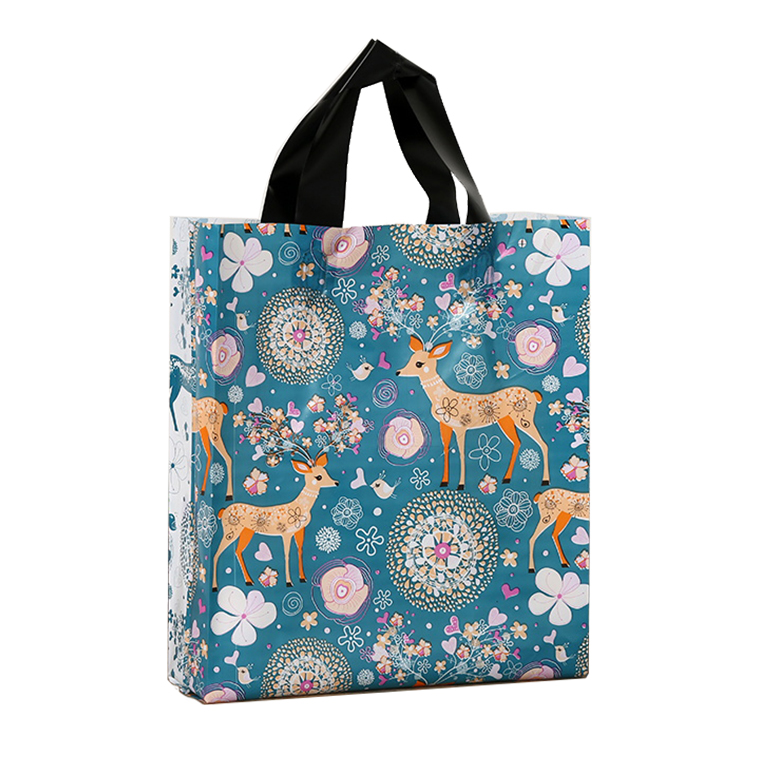

Bottom SealProduction Process
Machine Features
ModelKQ‑500ZD
Web PathU‑type design
Unwinding Width800 mm
Unwinding DiameterΦ700 mm
Bag‑making Length250‑600 mm
Bag‑making Width200‑480 mm
Minimum Inner Distance of Gusset160 mm
Film ThicknessHDPE 0.03‑0.08 mm
LDPE 0.04‑0.13 mm
Soft Handle Strip Length360 mm
Soft Handle Strip Thickness0.08‑0.20 mm
Handle Unwinding DiameterΦ500 mm
Handle Heat‑seal Spacing110 mm
Production Speed50 pcs/min
Line Speed30 m/min
Total PowerApprox. 15.5 kW
Power Supply380V, 50Hz
Operating NoiseApprox. 80 dB
Machine Overall Dimension5000×4000×1300 mm
Machine Weight2500 kg
Compressed Air7 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-500ZD design).
