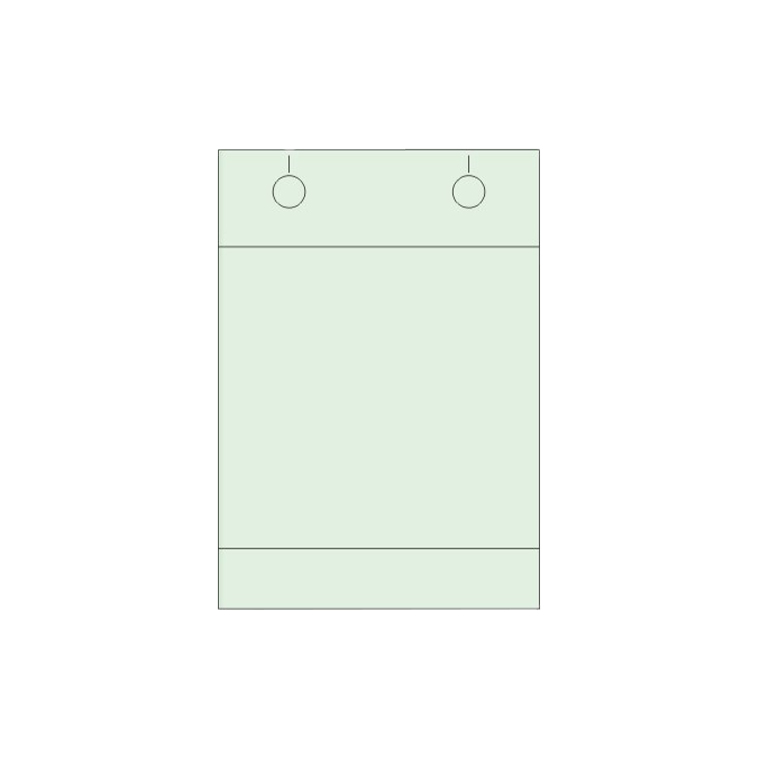

Wicket Bread BagApplicable Bag Types
View All Bag Types →Wicket Bread Bag

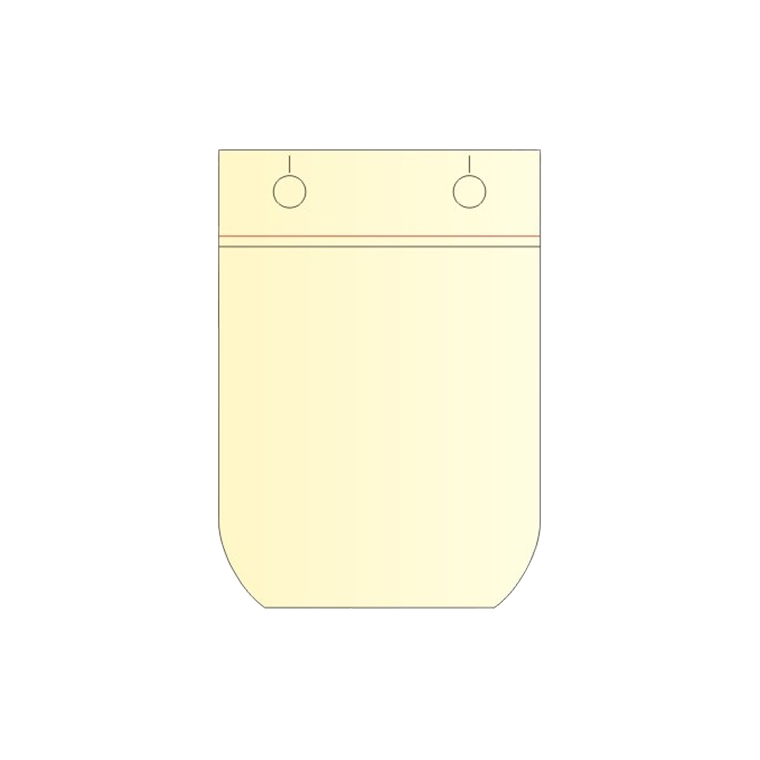

Chicken Bag (Round-bottom)Production Process
Machine Features
1Multi-Material Flexibility
- Runs HDPE, LDPE and CPP films.
- Wide thickness range support.
- Adaptable to customer films.
2Auto Hanging-Bag Collection
- Automatic stacking and collection.
- Reduces labor and keeps output tidy.
- Easy batch handling.
3Automatic Side-Hole Punching
- Built-in φ14 mm round punch.
- Clean side holes formed in-line.
- No separate punching station needed.
4High-Speed Servo Drive
- Full servo control delivers 280 strokes/min.
- Up to 250 bags/min for maximum output.
- Stable performance across film types.

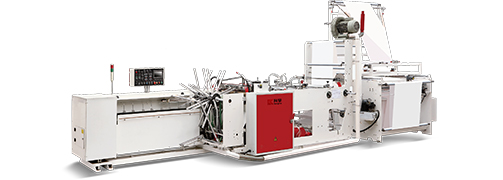

ModelKQ‑800BFS
Web Running DirectionLeft‑to‑Right
Roll Width1500 mm
Unwinding DiameterΦ1000 mm
Bag‑making Length (Bag Height)250‑700 mm
Bag‑making Width (Bag Width)100‑500 mm
Bottom Gusset30‑70 mm
Round Punching Hole DiameterΦ14 mm
Film ThicknessLDPE 0.025‑0.05 mm
CPP 0.02‑0.04 mm
Applicable MaterialsHDPE, LDPE, CPP
Line Speed70 m/min
Mechanical Speed280 cycles/min
Bag‑making Speed250 pcs/min (Actual speed subject to material properties)
Total PowerApprox. 41 kW
Power Supply380V, 50Hz
Operating NoiseApprox. 80 dB
Machine Overall Dimension12500×2800×2150 mm
Machine Weight5500 kg
Compressed Air10 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-800BFS design).
Download brochures, certificates and technical files for KQ-800BFS.
