KQ-800FBA Heavy-Duty Raw-Material Thick Bag Making Machine
Fully automatic machine dedicated to heavy industrial raw-material thick bags. Double sealing lines guarantee seal strength; fully automatic, simple to operate, efficient for thick-film products.
Max Speed15-50 pcs/min
Bag Width650mm
Working Lines0.04-0.25 mm
Control SystemPLC + Touch Screen

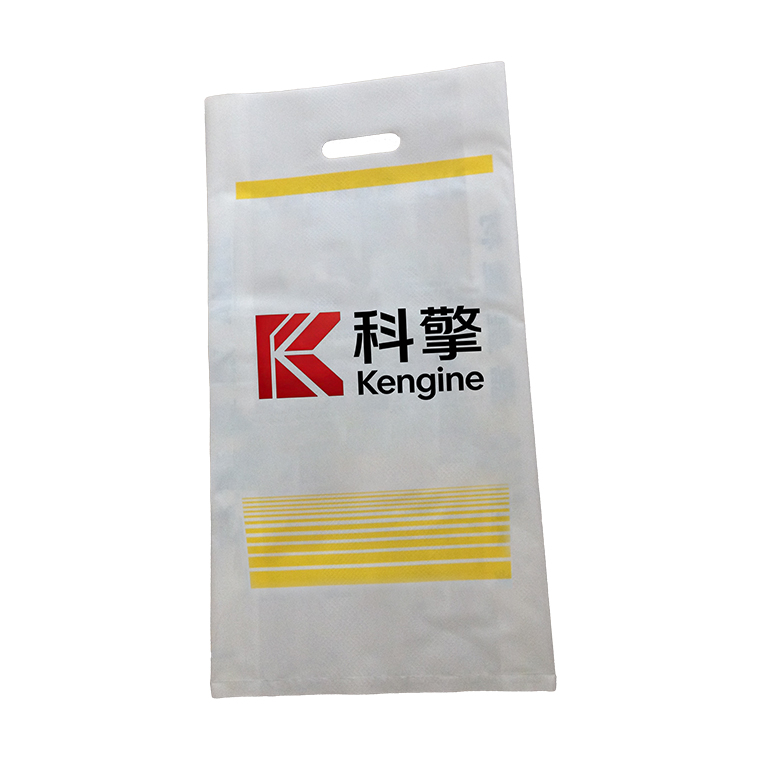

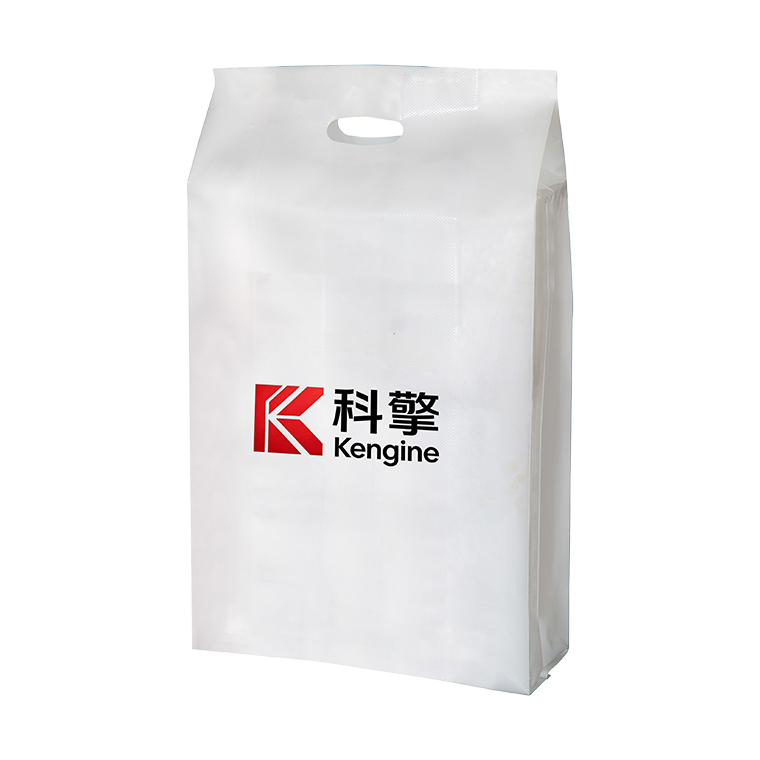

Applicable Bag Types
View All Bag Types →Laminated Pouch
Laminated PouchProduction Process
Machine Features
Bag styleBottom sealing bag
Cutting typecold cutting with flying knife
MaterialPE COEXTRUSION / PE laminated PE film
Max length size of bag making300-1100 mm
Max width size of bag making650mm
Thickness of produce0.04 mm×2－0.5 mm×2(without gusset)
(if with side gussets, The thickness:Max 0.25mm/layer)
The speed of making bag15-50 pcs/min
Schedule speed of feeding material40 m/min
Main derive structureThomson complete cycle deformation cam
Main motor1500W
Main motor inverter1500W
Servo driver for feeding material3KW x 2 set
The motor of feeding750W
Photocell trackingSICK from GERMANY
Temperature2 ways(up and down)
Electrical controlPLC program made control
Total power11.4KW
Outside of machine6050x1300x1300mm
Weight2400g
Configurable and optional features (all adjustable per the KQ-800FBA design).
