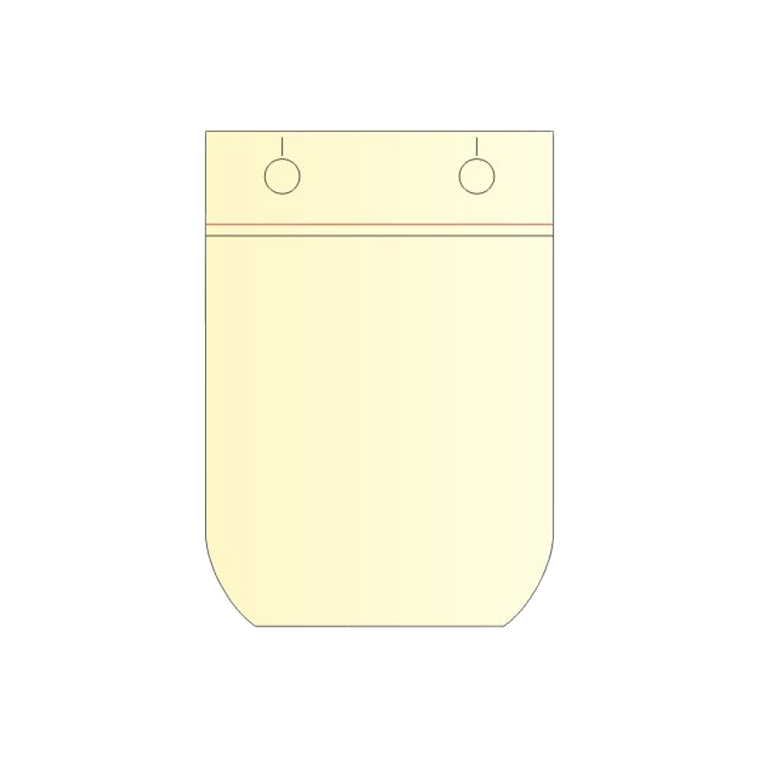

Side Weld BagApplicable Bag Types
View All Bag Types →Side Weld Bag

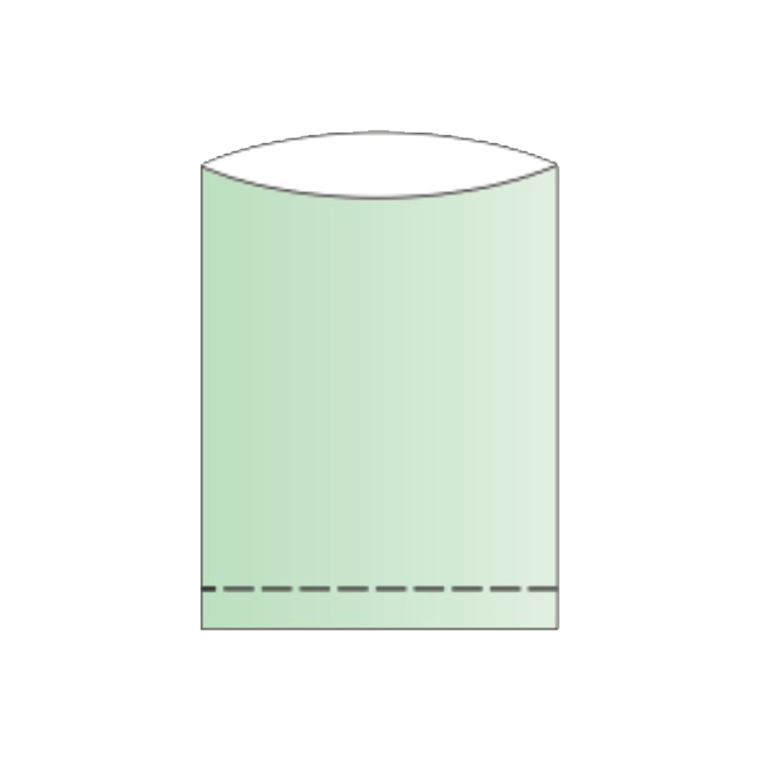

Chicken Bag (Round-bottom)Production Process
Machine Features
1Easy Operation
- Simple, accurate control
2PLC Servo Control
- Automatic, fast, precise
3Multi-Material
- BOPP, LDPE, HDPE
4Side Seal + Chicken Bag
- Both side-seal and round-bottom chicken bags

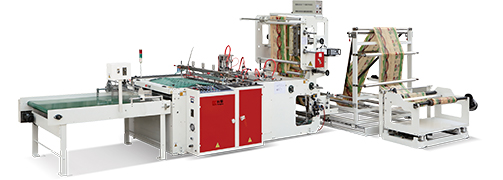

ModelKQ‑800SDB+CK
Web Running DirectionRight‑to‑Left
Bag‑making ModesEdge‑sealed bag, round‑bottom chicken bag
Sealing TypeHot‑cut edge sealing
Unwinding Width1600 mm
Unwinding DiameterΦ700 mm
Top Folding Edge50‑75 mm
Bottom Gusset20‑70 mm
Bag‑making Length (Bag Height)200‑750 mm for edge‑sealed bag
Bag‑making Width (Bag Width)200‑600 mm for edge‑sealed bag
Mechanical Speed180 cycles/min
Film ThicknessHDPE 0.02‑0.06 mm
LDPE 0.04‑0.1 mm
Bag‑making Speed180 pcs/min for edge‑sealed bag; 100 pcs/min for chicken bag
Actual bag‑making speed subject to material properties.
Line Speed60 m/min
Total PowerApprox. 10 kW
Power Supply3P, 380V, 50Hz
Operating NoiseApprox. 60 dB
Machine Overall Dimension5000×1550×1870 mm
Machine Weight1500 kg
Compressed Air5 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-800SDB+CK design).
