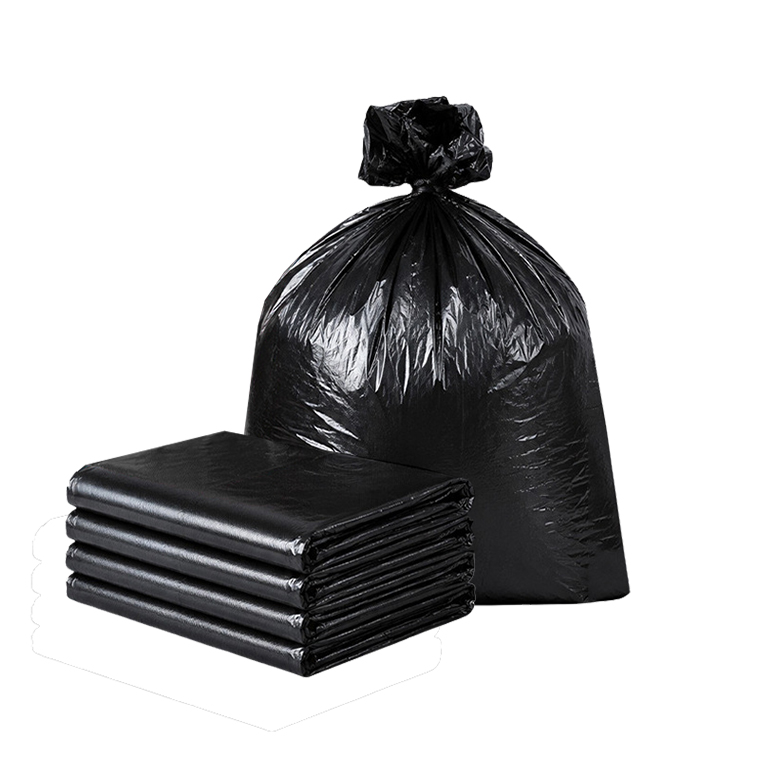

Bottom Seal BagApplicable Bag Types
View All Bag Types →Bottom Seal BagProduction Process

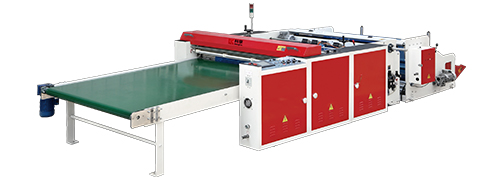

Machine Features
1Reliable Sealing
- Smooth running with dependable bottom seals
2Long-Bag Capability
- Bag length up to 3000 mm
3Servo Feeding + Tension
- Stable processing of thick and thin films
4Rotary Fly-Knife Cutting
- Precision flat cutting for extra-long bottom-seal bags
Bag stylebottom sealing bag
Max length size of bag making3000 mm
Max width size of bag making1300mm*1 line/ 550mm*2lines
Thickness of produce(40mic-150mic)×4 layers
Schedule speed of feeding material60 m/min
Main derive structurecoax eccentric
Main motor1500W
Main motor inverter1500W
Servo driver for feeding material4.4 KW x 1 set
servo motor for feeding4400kw
Tension controlfriction sheet
Photocell trackingLEUZE from GERMANY
Temperauter2 ways(up and down)
Electrical controlPLC programmade control (panasonic, JAPAN)
Total power8kw
Outside of machine6000x2200x1300mm
Weight2100kgs
Configurable and optional features (all adjustable per the KQ-1400FB design).
