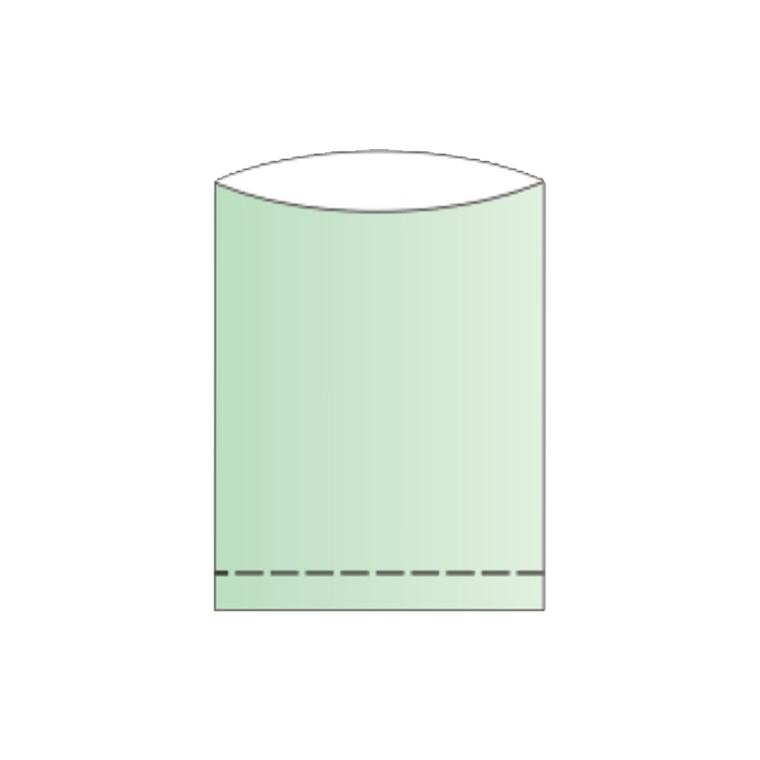

Side Seal BagApplicable Bag Types
View All Bag Types →Side Seal BagProduction Process
Machine Features
1Economical
- Low noise, energy saving
2Wide Material
- BOPP, LDPE, HDPE
3Strong Output
- Fast continuous running, clear capacity advantage
4High-Speed Side Seal
- Hot-cut side-seal for BOPP/LDPE/HDPE

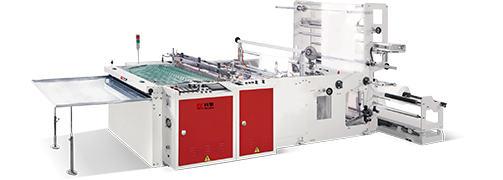

ModelKQ‑800SBD
Web Running DirectionRight‑to‑Left
Bag‑making ModesEdge‑sealed bag
Sealing TypeHot‑cut edge sealing
Unwinding Width1600 mm
Unwinding DiameterΦ700 mm
Top Folding Edge50‑75 mm
Bottom Gusset20‑70 mm
Bag‑making Length (Bag Height)Max. 750 mm for edge‑sealed bag
Bag‑making Width (Bag Width)Max. 900 mm for edge‑sealed bag
Mechanical Speed300 cycles/min
Film ThicknessHDPE 0.02‑0.06 mm
LDPE 0.04‑0.1 mm
Bag‑making Speed280 pcs/min for edge‑sealed bag
Actual bag‑making speed subject to material properties.
Line Speed60 m/min
Total PowerApprox. 10 kW
Power Supply3P, 380V, 50Hz
Operating NoiseApprox. 60 dB
Machine Overall Dimension6000×1550×1870 mm
Machine Weight1500 kg
Compressed Air5 HP (air compressor not included)
Configurable and optional features (all adjustable per the KQ-800SBD design).
