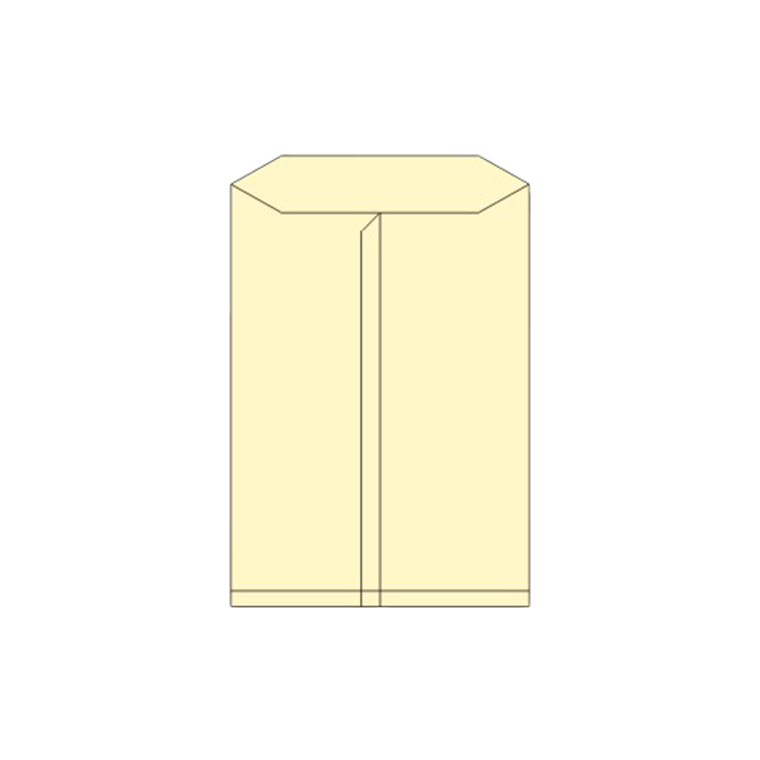

Center Seal BagApplicable Bag Types
View All Bag Types →Center Seal Bag

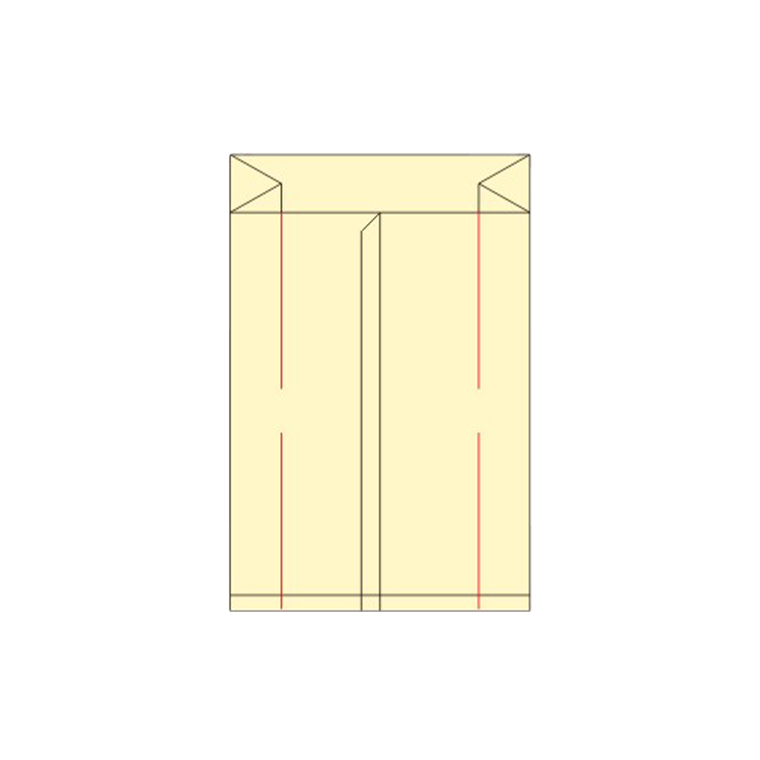

Center Seal Gusset Bag

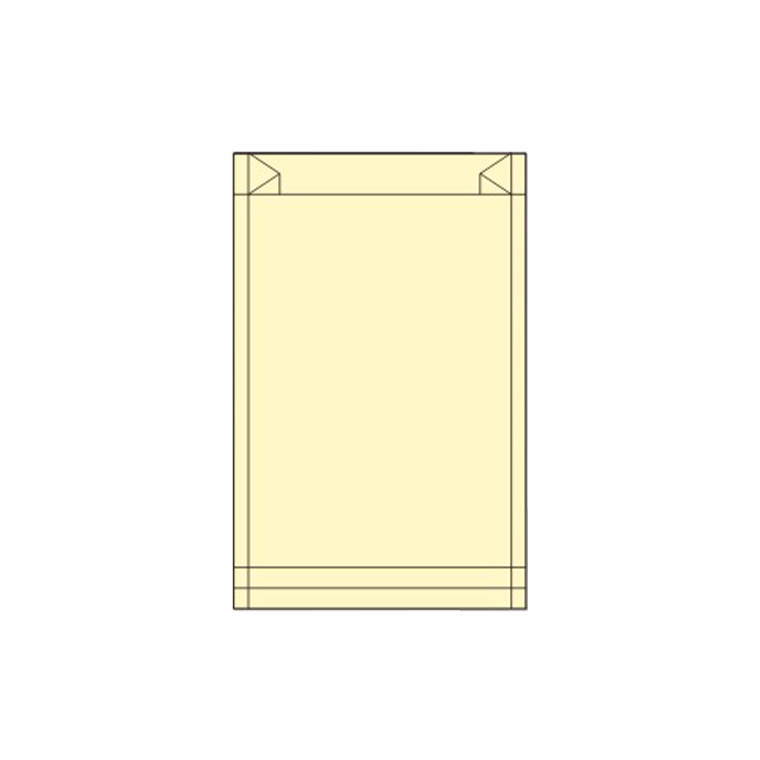

Four-side Seal Bag

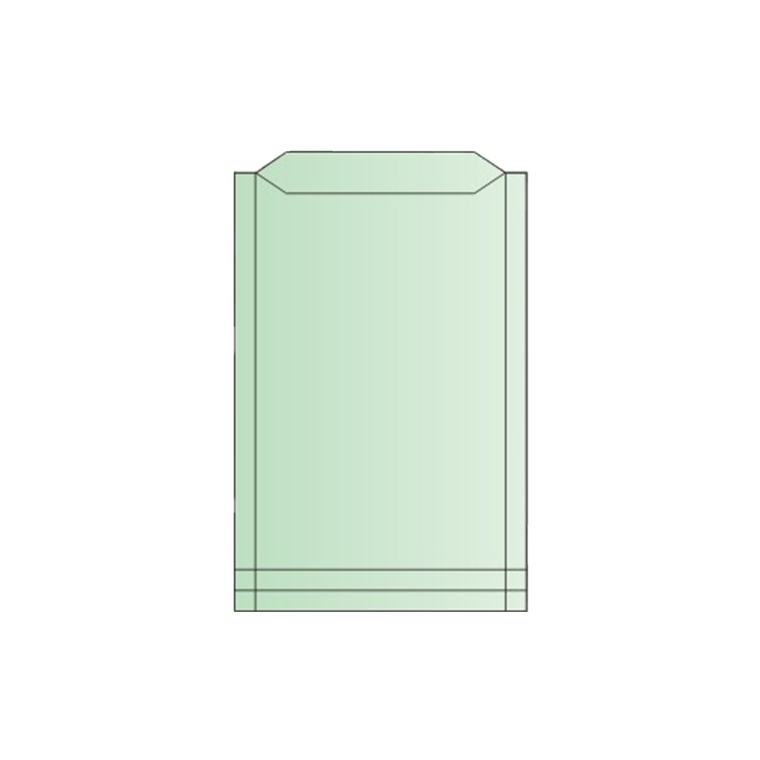

Three-side Seal BagProduction Process
Machine Features
1Reliable Thermal System
- 20 heating zones, 0-300°C
2Skip-Feed Capability
- 6× skip enables bag width/length up to 2280 mm
3PLC Servo Control
- Fully automatic, high speed, high precision
4Multi-Style Composite Bags
- 3-side, center, 4-side seal, zipper, stand-up
The dimension of roll materialф600*1200mm (diameter* web-width)
Accuracy of orientation≤± 0.5mm
Thermal-sealing knife’s quantity of heatVertical-sealing for zipper adopts 1 group for heating fluctuation
Vertical-sealing for side sealing adopt 4 groups for heating fluctuation, cooling fluctuation from up and down
Bottom sealing adopts 2 group zipper flatten, 3 group heating,1 group for cooling
The quantity of temperature heating20
The bound of temperature0-300 ℃
Total power34kw
Overall Dimension(L*W*H) 10000×1800×1700mm
Weight of machineAbout 4200 kg
Colorwhite of cover, white blue of fuselage+ red door
The type of control systemSSF-Ⅱ High speed laminating film bag making machine control system
solid state relay14pcs
Configurable and optional features (all adjustable per the KQ-600ZF+SZ design).
Download brochures, certificates and technical files for KQ-600ZF+SZ.
