hFully Automatic Coreless Roll Bag Making Machine
KQ-300BR+2
High-speed coreless roll bag machine for octagon bags, garbage bags, vegetable bags and tablecloths. Auto roll-change system reduces labor; servo-driven for precise, convenient operation.
Max Speed250 pcs/min
Bag Width300×2 mm
Film ThicknessHDPE/LDPE
Control SystemServo + PLC
Product Overview
High-speed coreless roll bag machine for octagon bags, garbage bags, vegetable bags and tablecloths. Auto roll-change system reduces labor; servo-driven for precise, convenient operation.

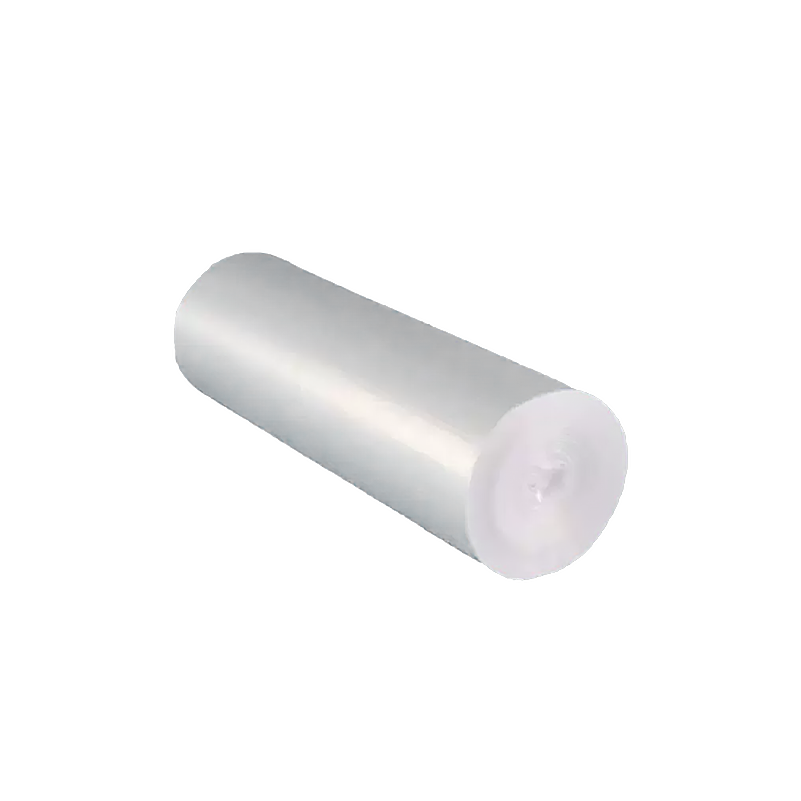

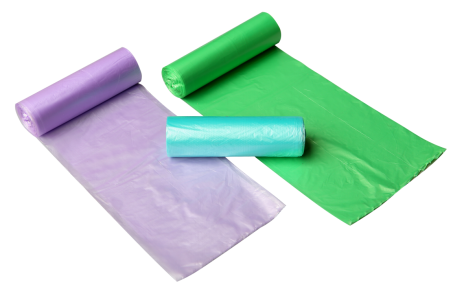

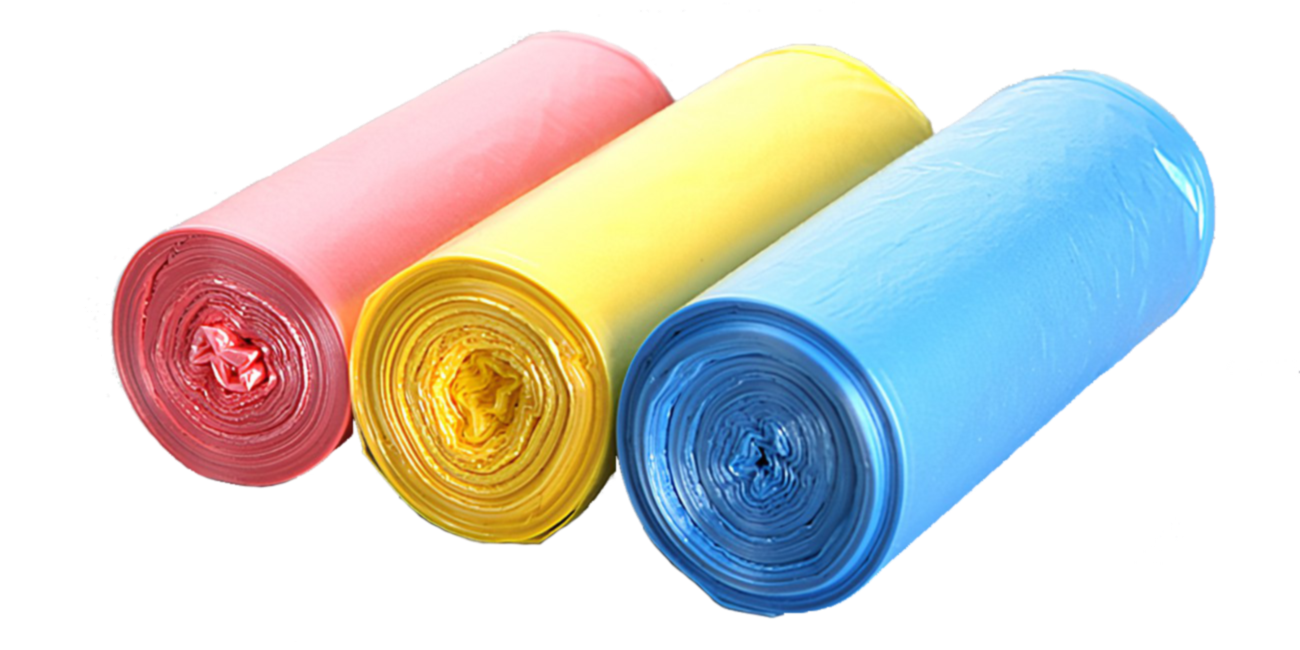

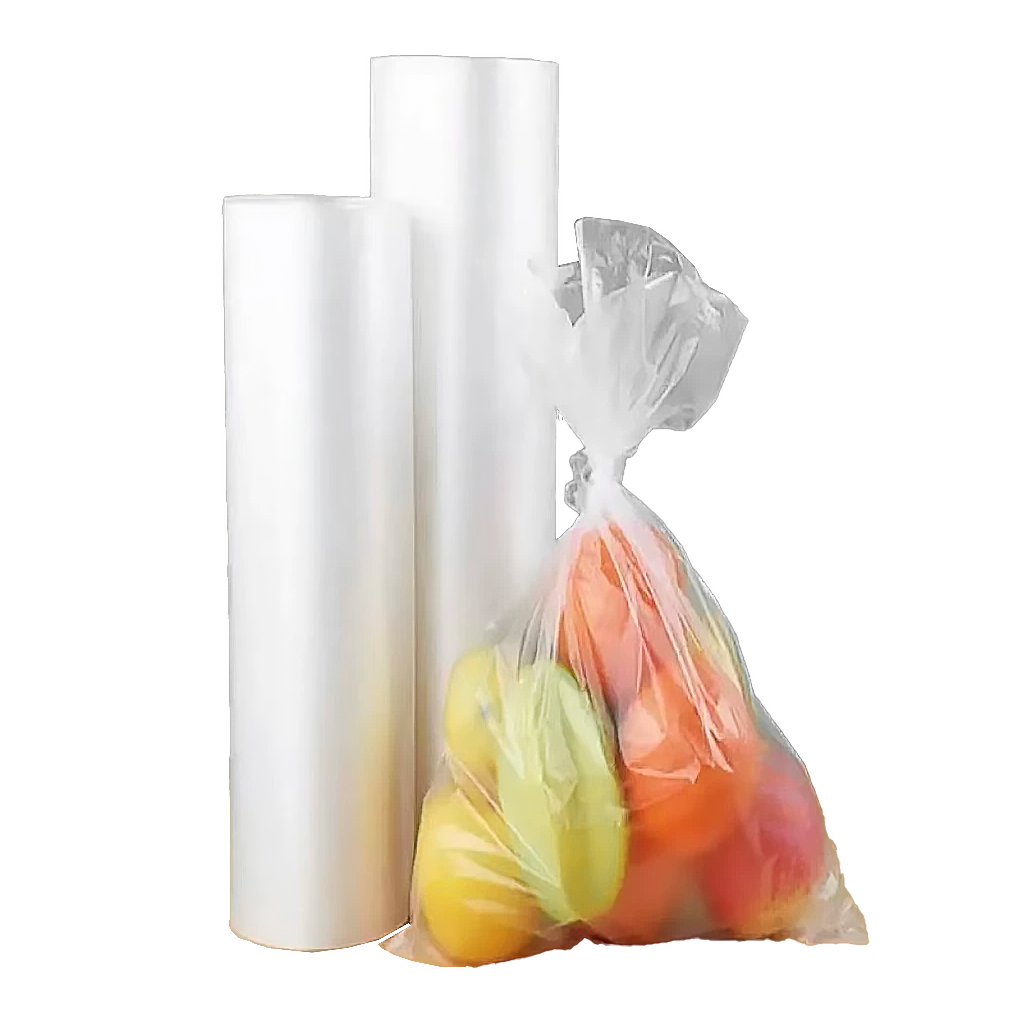

Applicable Bag Types
View All Bag Types →h
h
h
hProduction Process
Machine Features
1Coreless Roll
- Produces coreless roll bags directly.
2High Speed
- Up to 250 pcs/min.
3Auto Change
- Automatic roll-change system.
4Multi-Type
- Octagon, garbage, vegetable, C-type bags.
ModelKQ-300BR
Bag FormCoreless roll / octagon / C-type
Speed250 pcs/min
Web Width300 mm × 2 (dual line)
Bag Length250-10000 mm
Film ThicknessHDPE / LDPE
Power~18 kW
Voltage380V 50Hz
Weight2900 kg
Dimension6600×3300×1900 mm
Get Quotation or Technical Proposal
Tell us your bag size, material and production requirement. We will recommend the suitable machine and configuration.
