T-shirt BagFully Automatic Super High Speed T-shirt Bag Making Machine (2 lines)
CW-400V2
Max Speed
Bag Width
Film Thickness
Control System
Applicable Bag Types
View All Bag Types →T-shirt Bag
Shopping Bag
Food Pouch
Daily Chemical Pouch
Liquid Pouch
Medical PouchProduction Process
Machine Features
1Smart Control Panel
- PLC programmable controller with safety warnings.
- Large touch screen shows real-time parameters.
- 6 languages selectable for global operators.
2Multi-Language Touch Screen
- 7-inch color display for every production line.
- One-touch recipe switching.
- Error prompt screen for fast troubleshooting.
3304 Stainless Steel Conveyor
- Food-grade 304 stainless steel surface.
- Adjustable conveyor height and speed.
- Smooth feeding for fragile products.
4Constant-Temp Rotary Cutter
- Reversible heavy-duty side sealing knife.
- Independent intelligent temperature control.
- High-temperature cloth reduces waste.
5Fiber Optic Sensor
- German LEUZE photocell, zero failure.
- Color-code tracking for printed film.
- High-speed precise positioning.
6Film Unwinding
- Two-line independent unwinding.
- Air-expansion shaft, max 120 kg roll.
- Inverter tension auto tracking.
7Mechanical Arms
- Bag-sweeping and flattening design.
- AC frequency motor auto-grabs batch.
- Free stop position setting.
8EPC & Film Adjustment
- Two-line independent EPC design.
- Each line independently controlled.
- Error alarm prevents off-center film.
ModelCW-400V2
Working Lines2 lines
Flow Directionfrom right to left
Unwinding Width400 mm
Discharging Diameterφ1000 mm
Bag Making Width400 mm × 2 lines
Bag Making Length350–700 mm
Film ThicknessHDPE 0.008–0.04 mm
Production Speed250 pcs/min
Feeding Speed125 m/min
Total Power18.5 kW
Power Supply380V 50Hz
Machine Size8000 × 1850 × 1800 mm
Machine Weight3100 kg
Air Compression7 HP (excl. air compressor)
Main Components (Brand & Origin)
Air cylindersSHAKO — Taiwan
Power cylinder of puncher (2 pcs) 5TMARTO — Taiwan
Photocell (2 pcs)LEUZE — Germany
Servo motor (2 pcs) 4.4 kWYASKAWA — Japan
Main motor (1 pc) 1.5 kWCPG — Taiwan
Traction motor 0.75 kWTCG — Taiwan
Motor reducer 0.55 kWTCG — Taiwan
Driver motor of manual clip 1.5 kWCPG — Taiwan
Inverter 4 pcs 1.5/0.75 kWYASKAWA — Japan
Touch screen 1 pc 5.7"WEINVIEW — Taiwan
PLC 1 pcPANASONIC — Japan
Proximity switch 10 pcs LM12-3004NAFOTEK — Taiwan
Switch power 2 pcs 24V 100WShanghai
Transformer control 1 pc 380V/220V 3phRUIAN
Switch and buttonIDEC — Japan
Temperature controllerFOTEK — Taiwan
Solid state relayFOTEK — Taiwan
Pressure regulating valveSHAKO — Taiwan
Condition of Machine Running
A.Illumination not exceeding 3000 LX.
B.Altitude not exceeding 1000 m.
C.Ambient temperature: no higher than +40°C and no lower than −20°C.
D.Relative air humidity not exceeding 85%.
E.No conductive dust present.
F.No explosive or fire-hazard environment.
Configurable and optional features (all adjustable per the CW-400V2 design).
✓
Handle punch size & positionFreely settable according to product size; different punch dies quick-change.
✓
Manipulator stop positionFree setting according to product size for accurate grabbing.
✓
Operator language6 languages selectable on the touch screen (Chinese / English / etc.).
✓
Material compatibilitySupports HDPE and recycled materials from the film blowing machine.
✓
Independent EPC per lineTwo-line independent edge-position control with error alarm.
✓
Punching waste collectionCentral collection of punching waste through the conveyor belt.
Download brochures, certificates and technical files for CW-400V2.

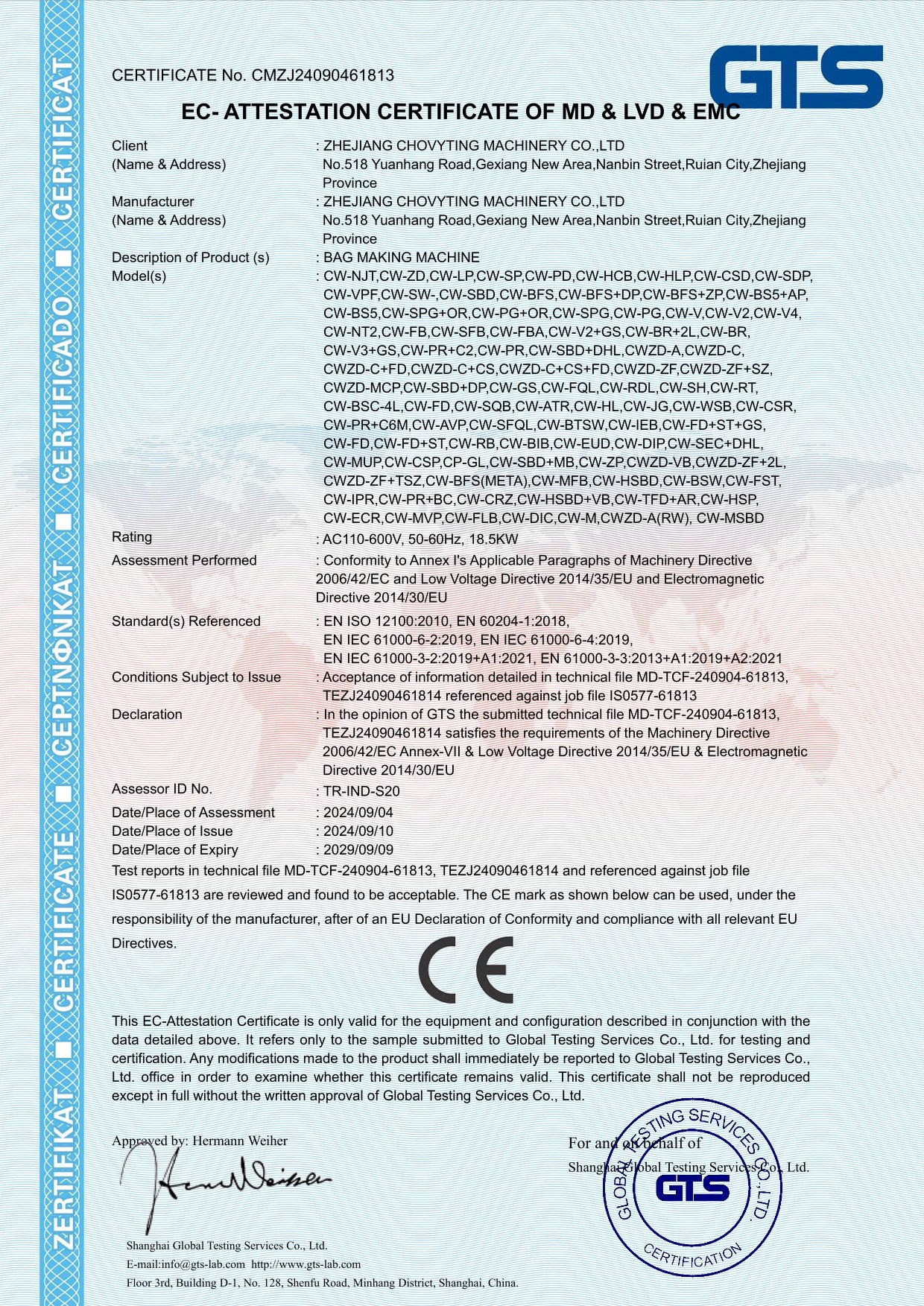

CE Certificate (2024)View / Download

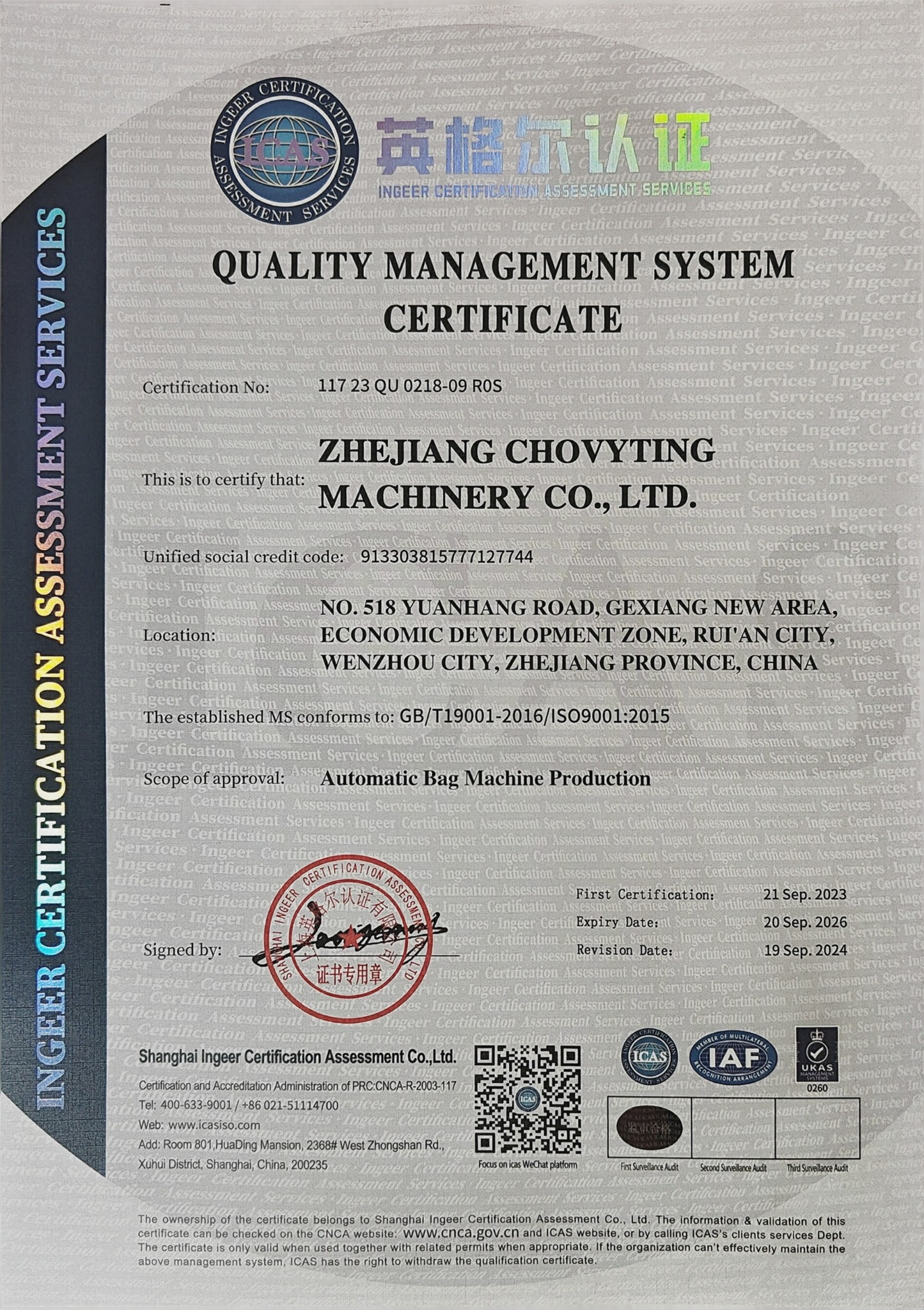

ISO Certificate (EN)View / Download

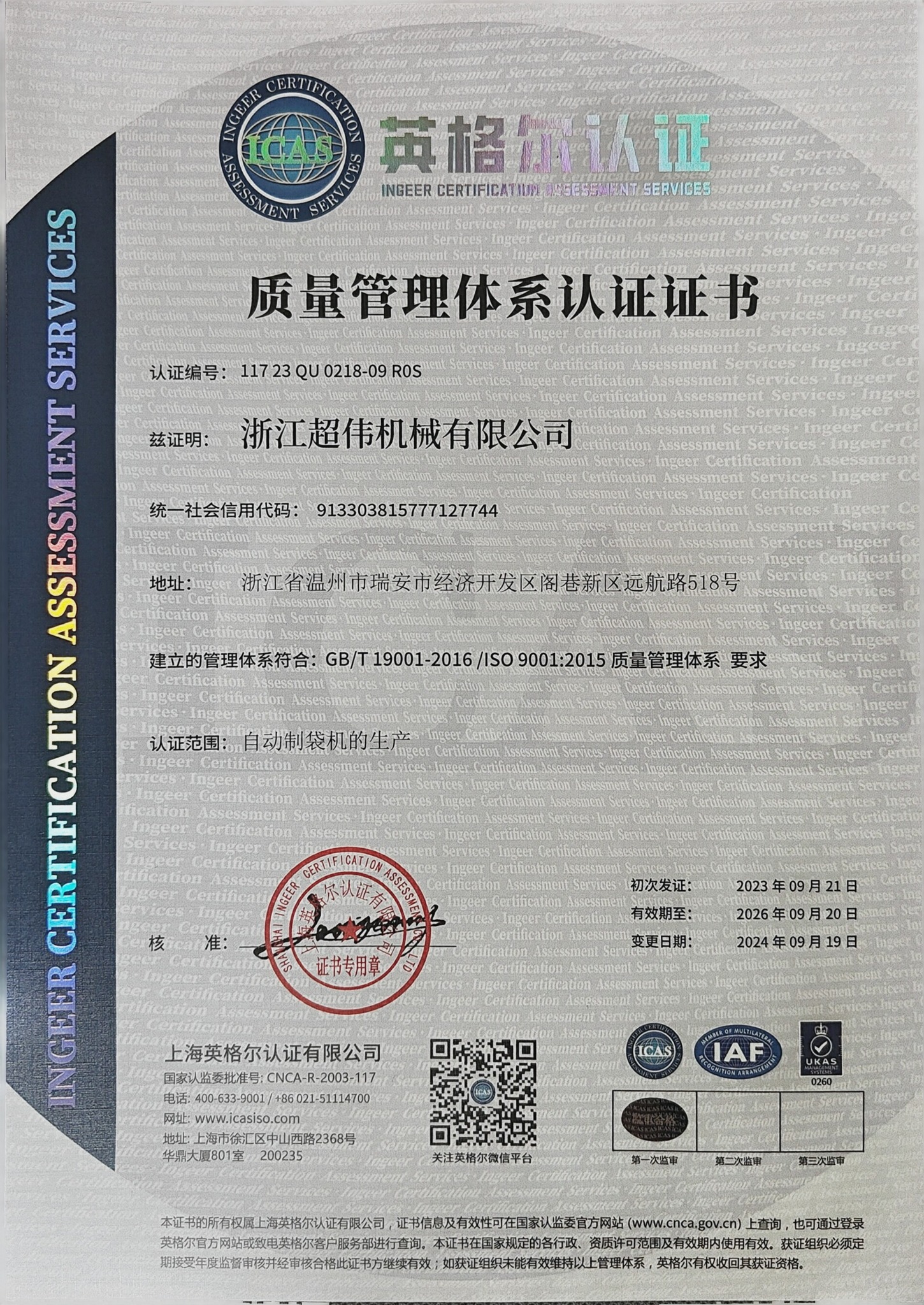

ISO Certificate (CN)View / Download
UKCA CertificateView / DownloadNeed the Full Brochure?
Get the complete CW-400V2 brochure and operation manual with all drawings and specs.
